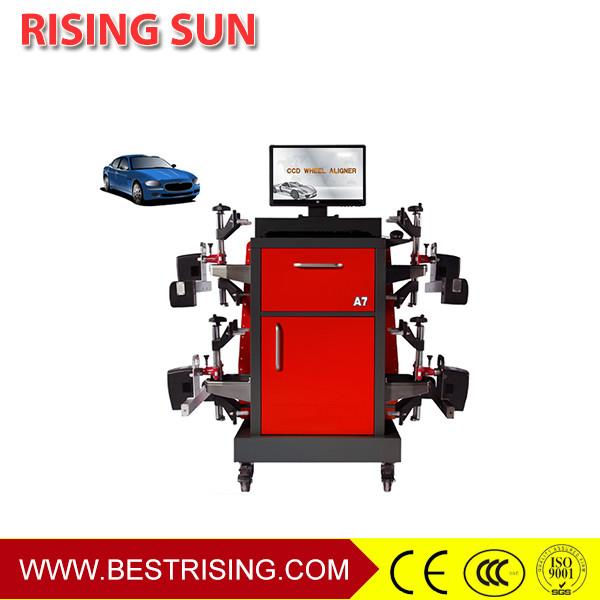

CCD wheel alignment machine price for auto garage
Product feature
1.Windows XP,2014 professional software ;
2. Pure CCD image processing, image recognition measurement
3. Bluetooth 2.4G wireless transmission technology, the phone can
be identified
4.100% level electronic, on-line monitoring sensors work, you can
remote control operation
5. The full three-dimensional animation auxiliary, easier to use
6. Talking four locator, Chinese, English, Russian, Spanish
multi-language selection
7. resistance to light interference ability to adapt to a variety
of work environments
8. Support Audi A6, Passat B5 toe arc adjustment of
9. having to get off and surrounded by large adjustment indicator
automatic recognition measurement function
10. The field reset calibration data, without the return, the
sensor is completely independent interchangeable
11. to increase the rim diameter range of 10 "-21"
12. LCD sensor communication status and battery
13. having a black box fault logging
14.More than 20000 vehicle database,online update supported .
Technic data
| Accuracy | Range |
Front and rear toe angle | ±0.01 | ±4.8° |
Camber | ±0.01 | ±12° |
After caster | ±0.04 | ±20° |
Front and rear set back | ±0.04 | ±4° |
Inner angle | ±0.04 | ±20° |
Thrust angle | ±0.01 | ±4° |
Standard accessories included ,
n Cabinet x 1
n Clamp x 4
n Turnplate x 2
n Computer x 1
n Printer x 1
n Sensor x 4
n Brake lock x 1
n Steel wheel lock x 1
n Wedge x 2
n Hangers for clamp x 4
Packing : total 2 cartons , 159kgs , 0.78cbm
n 780x665x1140mm
n 830x440x510mm
