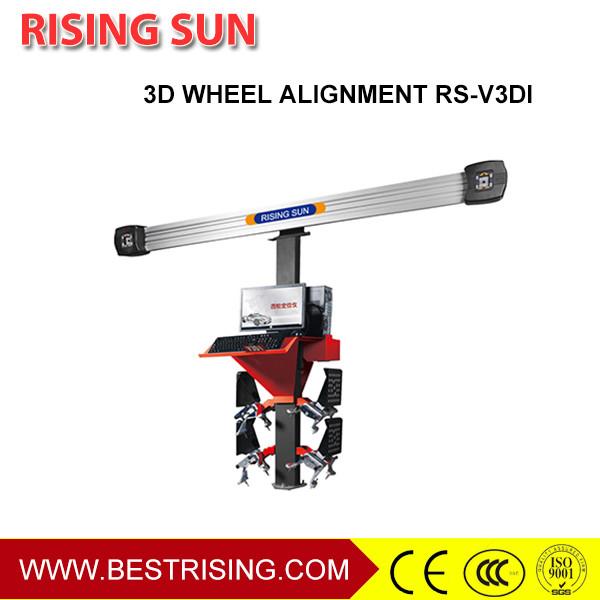

Car repair used 4 wheel aligner for workshop
Product feature
1. Windows 7 computer system , 3D wheel alignment software ;
2. Easy to operate with guiding menu, to read alignment database
within 3 minutes;
3. The fault of machine can be reduced as no electric element &
battery & transmission cable & bluetooth & infrared ray on the
target plates ;
4. HP computer ;
5. Calibration made before delivery ,convenient to use, no
influenced by working site ;
6. Set with Volkswagen dedicated application,can measure toe-arc
for A6,B5;
7. 26kinds of language for different countries and districts ;
8. Suit for measurement of vehicle with super-low chassis ;
9. Integrative cabinet , simple but perfect ;
10. 25000 vehicle database , online updating .
Technic data
Item | Measurement Accuracy | Measurement Range | Total Measurement Range |
Camber | ±0.01° | ±8° | ±8° |
Caster | ±0.05° | ±19° | ±19° |
Front wheel KPI | ±0.02° | ±19° | ±19° |
Total Toe | ±0.01° | ±2° | ±8° |
Rear wheel thrust angle | ±0.01° | ±2° | ±4° |
Toe-out on turn | ±0.08° | ±2° | ±40° |
Axle offset of Rear wheel | ±0.02° | ±2° | ±4° |
Wheel tread difference | ±0.03° | ±2° | ±8° |
Front setback | ±0.02° | ±2° | ±4° |
Rear setback | ±0.02° | ±2° | ±4° |
Wheel tread | ±0.64cm(±0.25cm) | <265cm(<105in) | <265cm(<105in) |
Wheelbase | ±0.64cm(±0.25cm) | <533cm(<210in) | <533cm(<210in) |
Standard accessories include ,
n Camera beam x 1
n Computer x 1
n Printer x 1
n Turnplate x 2
n Brake lock x 1
n Steel wheel lock x 1
n Target plate x 4
n Wedge x 1
n Hanger for clamp x 4
Packing : total 2cartons ,177kgs , 1.37cbm
n 1780x765x750mm , 1ctn
n 2900x370x320mm , 1ctn
